Order A Durable Thermal Mass Flowmeter Designed For Heavy Industrial Use -- 123456.00
| flowmeterssupplier - Mumbai, Maharashtra - Nov 21, 2025 |
|
|
|

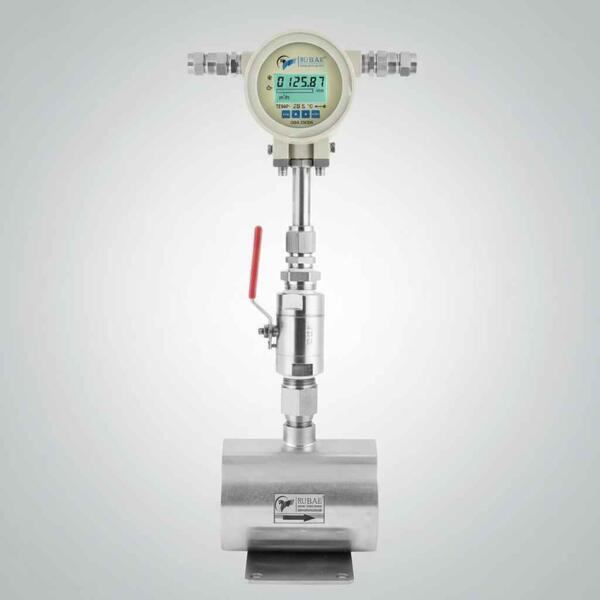

message flowmeterssupplier about this ad The BT-3020-X insertion thermal mass flow meter uses a dual platinum wire wound sensor enclosed in an SS316 sheath, ensuring accurate gas flow measurement. Its advanced sensor design features two platinum coils that work as heating and temperature-sensing elements for high accuracy. It comes in integrated and remote transmitter versions with a graphical LCD showing temperature, velocity (nm/s cumulative values, and real-time flow. Connectivity options include 420 mA HART, RS485, and pulse outputs. A flameproof enclosure and dual power inputs (24 VDC / 230 VAC) ensure safe operation in hazardous environments. The meter includes an integrated diagnostic system for continuous performance monitoring. Its insertion design allows easy installation with 3/4 or 1 NPT compression fittings and supports pipe sizes from 2 to 80 with different probe lengths. With no moving parts, it offers long life and simple maintenance. The BT-3020-X is suitable for clean gases like air, natural gas, LPG, biogas, and flare gases, making it ideal for precise industrial gas monitoring. BT-3020-X Features Graphical LCD for flow, cumulative, velocity, temperature 420 mA HART analog output Dual-chamber die-cast aluminum enclosure 3/4 OD probe for easy installation SS316 construction with no moving parts Dual power input (24 VDC / 230 VAC) Field programmable Optional IoT monitoring Explosion-proof & weatherproof enclosure BT-3020-X Benefits Direct mass flow measurement High accuracy Negligible pressure drop Works with many gases High turndown ratio (up to 100:1) Unaffected by pressure/temperature changes No moving parts Rugged design Easy installation Fast response time Mechanical Specifications Measuring principle: Calorimetric (CTA) Sensor: Dual RTD platinum wire wound, SS316 Probe: SS316 Fittings: 3/4" NPT or 1" NPT Ferrule: PEEK Pipe sizes: DN50DN2000 Probe lengths: 680 Wetted parts: SS316 Housing: Dual-chamber die-cast aluminum Flow conditioner: Optional Transmitter Specifications Display: Graphical LCD Parameters: Flow, cumulative, velocity, temperature Electronics: Microprocessor-based Configuration: Keypad Outputs: 420 mA HART Communication: RS485 Modbus RTU Power: 24 VDC (2A) / 230 VAC Cable entry: 1/2 NPT(F) Enclosure: Flameproof Exd IIB T6, EPL Gb/Db Approvals: PESO Process Parameters (Same as mechanical) Calorimetric principle Dual RTD platinum sensor, SS316 3/4 or 1 NPT fitting PEEK ferrule DN50DN2000 pipe sizes 680 probe lengths SS316 wetted parts Die-cast aluminum housing Optional flow conditioner Call us 8355850162 message flowmeterssupplier about this ad |
